Pumps
Twin Screw Pump with Motor Directlyno model specified
Donjoy
- Flow range
- 3 - 22 m³/h
- Max particles
- 23 mm
- Max pressure
- 20 bar
Pumps

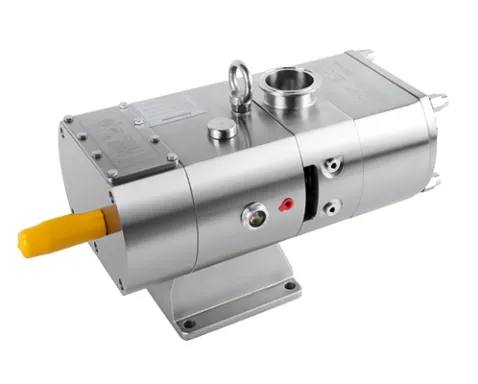

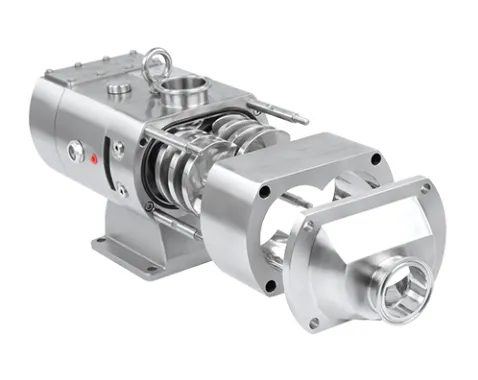

Twin Screw Pumpno model specified
by Donjoy
Twin-screw pump has self-priming ability and can transport various complex conditions such as solid particles, gas-liquid mixture, high viscosity, low viscosity and material transportation and extraction
- Max flow
- 110 m³/h
- Max particles
- 23 mm
- Max pressure
- 20 bar
- Speed range
- 10-3500 R.P.M
- Working temperature (max temperature)
- -40 ° C to 150 ° C
Description
Twin-screw pump has self-priming ability and can transport various complex conditions such as solid particles, gas-liquid mixture, high viscosity, low viscosity and material transportation and extraction; it not only used for material extraction and Conveying, also applicable to CIP and SIP systems,it can reduce pipeline, valve control, CIP dedicated pumps, Not only improve efficiency but also reduce costs. The pump also has the performance that other volumetric pumps do not have, such as no pulse phenomenon, no damage to particles, high pressure, speed range and large flow range.
Typical applications
- Self-priming ability
Specifications
| Performance | |
|---|---|
| Certification | 3-A-02-11 No.1759; FDA 177.2600; CE-MD/06-42 No .705201402401-00 |
| Materials | |
| Material | 100% stainless steel, medium contact part 316L. |
| Surface treatment | Ra≤0.6μm; EP=Ra0.4μm |
Specifications vary by size and option. Contact us to confirm the data for your exact model.
